MS11

ADJUSTABLE RANGE, STAINLESS STEEL MICROWAVE TOUCHLESS ACTUATOR





TECHNOLOGY

CERTIFICATION





DESCRIPTION

BEA’s MS11 is an aesthetically pleasing, touchless activation device designed to reduce the spread of germs and improve accessibility in healthcare, retail, industrial and commercial settings. The MS11 has been purpose-built to withstand the extreme rigors of fast-paced and sanitary environments.

The flush-mount MS11 is a durable stainless steel device utilizing adjustable-range microwave technology



The MS11’s illuminated center and audible signaling confirms activation and encourages proper touchless use.

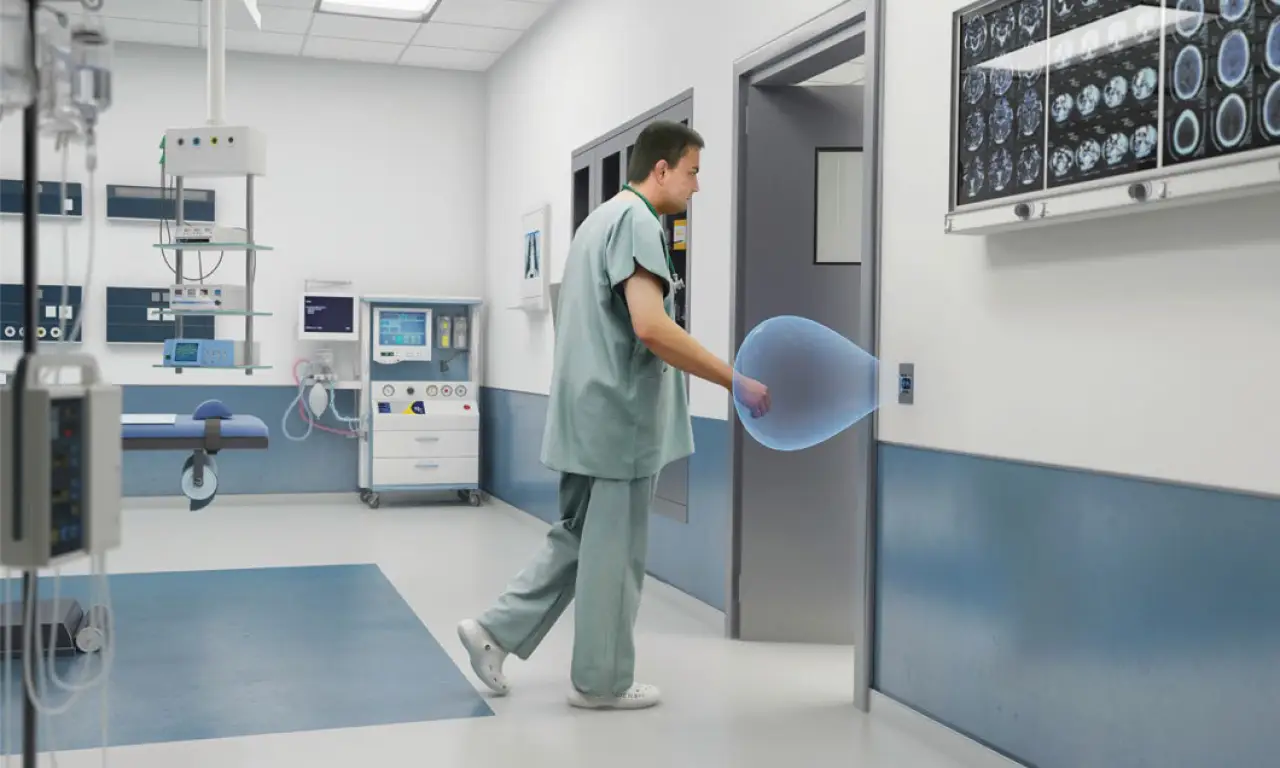

The MS11 detects moving objects such as a hand, cart or wheelchair and is designed for use in hospitals, pharmacies, clean rooms, food service and other areas needing highly accessible and germ-free activation.



Ideal For Harsh Environments

IP65 rated enclosure capable of use in industrial and extreme washdown environments.

High-Visibility

Illuminated blue center changes to green upon signal reception / activation

Adjustable Detection Zone

Adjustable sensing zone from 2 – 24 inches (pulse or toggle)

Activation Alerts

Adjustable audible alert setting, including silent-mode required for hospitals and other noise-sensitive environments

Adjustable Hold Time

Configurable output hold time of 1 – 30 seconds allowing unique, user-defined device placement

Universally Compatible With Automatic Doors

Compatible with all automatic door control makes and models

APPLICATIONS

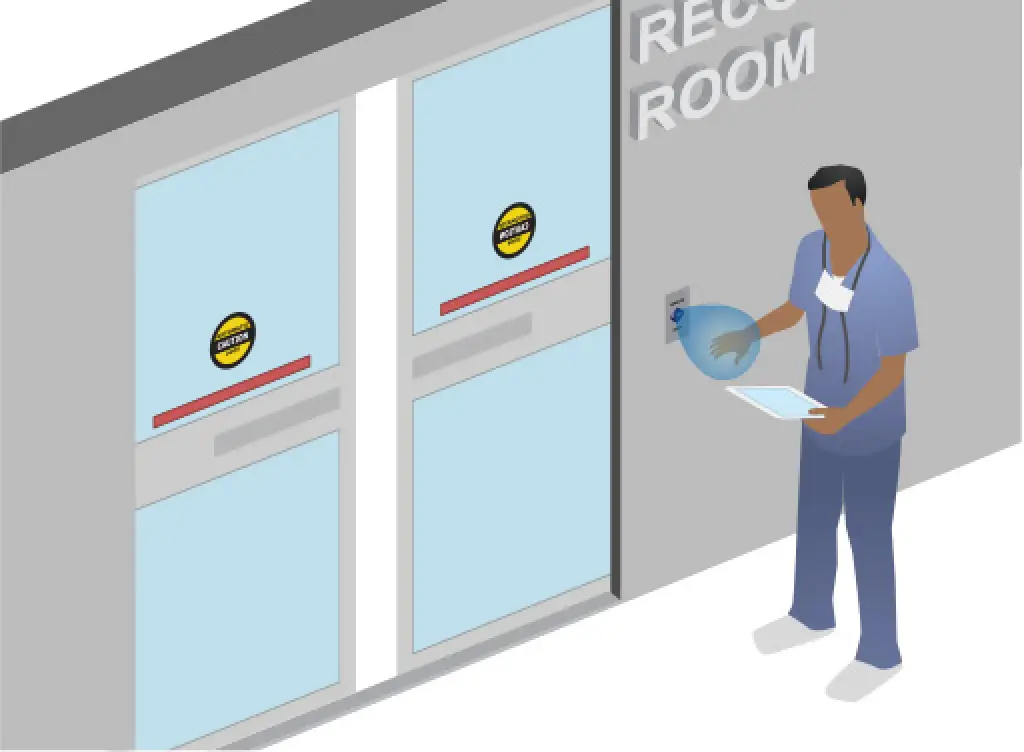

Healthcare Enviroments

Clean Rooms and Sterile Facilities

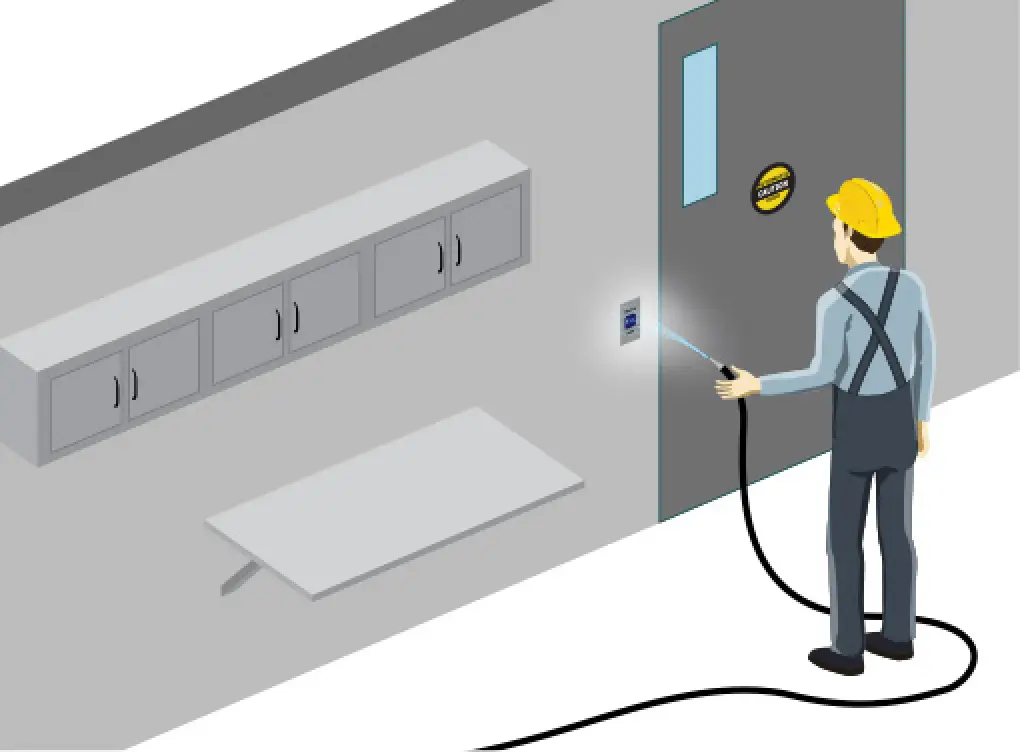

Washdown Resistant



TECHNICAL SPECIFICATIONS


Technology Microwave Doppler Radar
Detection Mode Motion (bidirectional), Toggle or Timed Mode
Sensing Zone ** 2 – 24” (adjustable)
Hold Time 1 – 30 s
Alert Settings
   Audible Alert Silent Mode or Signal Mode
   Visual Alert Blue (Standby) Green (Activation)
Supply Voltage 12 – 24 VAC / VDC or 5 VDC
Current Consumption < 2.8 W
Temperature Range -22 – 158 °F
Enclosure Rating IP65
Relay 1-Form C Solid State Relay
  1 A 30 VAC / VDC (max)
Dimensions

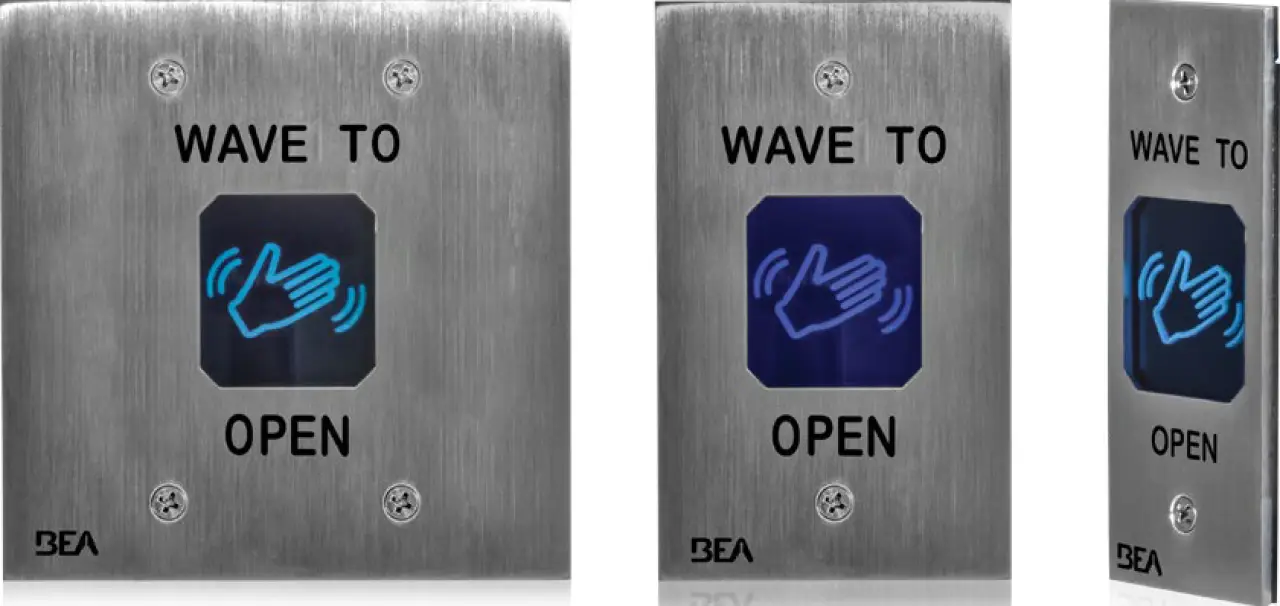

   Single Gang 4.5” (H) × 2.75” (W) × 0.98” (T)
   Double Gang 4.5” (H) × 4.5” (W) × 0.98” (T)
   Jamb 4.5” (H) × 1.68” (W) × 0.98” (T)
Wire Harness Length 12”
Material Stainless Steel (faceplate) / ABS (center)



PRODUCT SERIES
